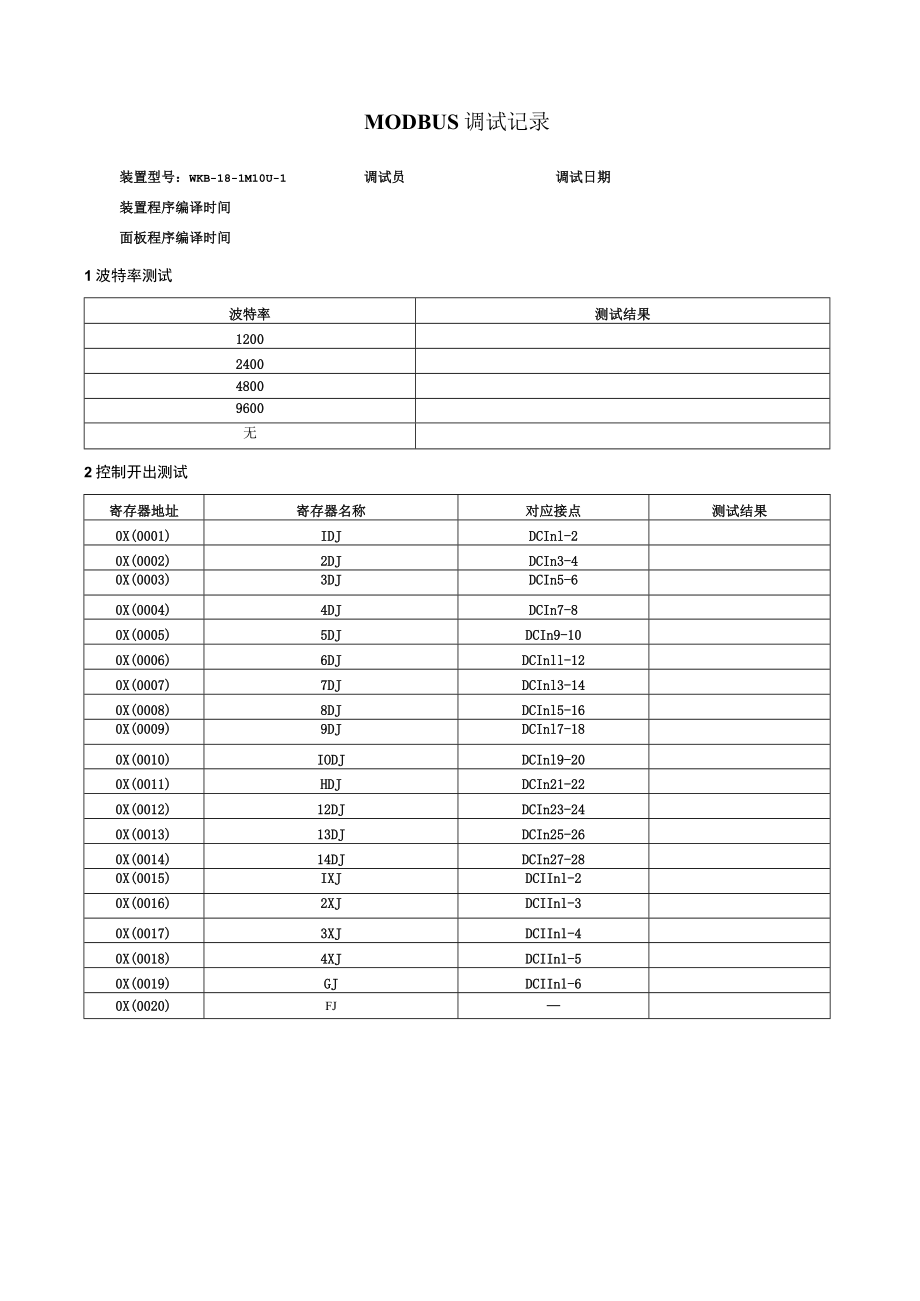

1、MODBUS调试记录装置型号：WKB-18-1M10U-1调试员调试日期装置程序编译时间面板程序编译时间1波特率测试波特率测试结果1200240048009600无2控制开出测试寄存器地址寄存器名称对应接点测试结果0X(0001)IDJDCInl-20X(0002)2DJDCIn3-40X(0003)3DJDCIn5-60X(0004)4DJDCIn7-80X(0005)5DJDCIn9-100X(0006)6DJDCInll-120X(0007)7DJDCInl3-140X(0008)8DJDCInl5-160X(0009)9DJDCInl7-180X(0010)IODJDCInl9-200

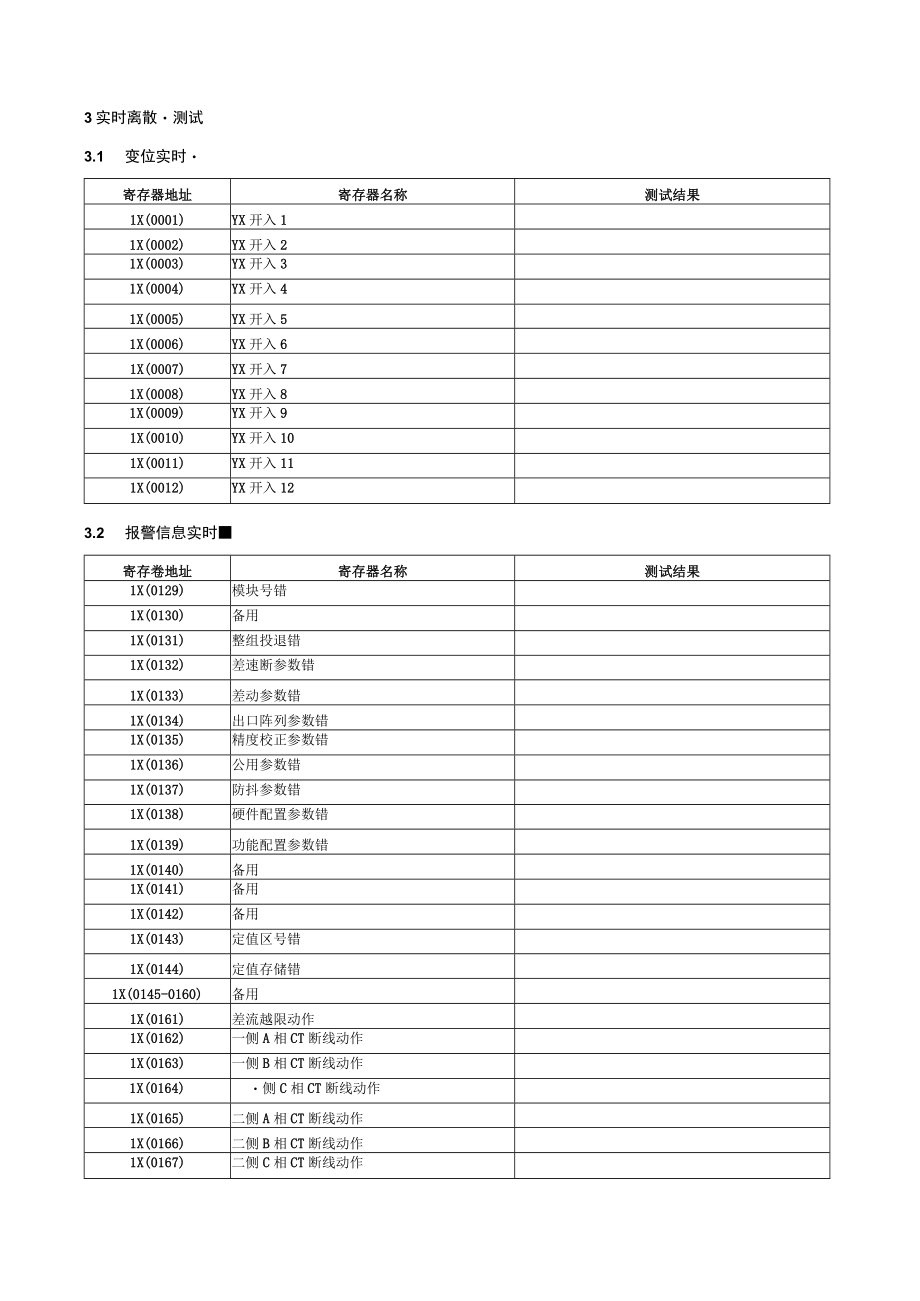

2、X(0011)HDJDCIn21-220X(0012)12DJDCIn23-240X(0013)13DJDCIn25-260X(0014)14DJDCIn27-280X(0015)IXJDCIInl-20X(0016)2XJDCIInl-30X(0017)3XJDCIInl-40X(0018)4XJDCIInl-50X(0019)GJDCIInl-60X(0020)FJ3实时离散测试3.1 变位实时寄存器地址寄存器名称测试结果1X(0001)YX开入11X(0002)YX开入21X(0003)YX开入31X(0004)YX开入41X(0005)YX开入51X(0006)YX开入61X(0007
3、)YX开入71X(0008)YX开入81X(0009)YX开入91X(0010)YX开入101X(0011)YX开入111X(0012)YX开入123.2 报警信息实时寄存卷地址寄存器名称测试结果1X(0129)模块号错1X(0130)备用1X(0131)整组投退错1X(0132)差速断参数错1X(0133)差动参数错1X(0134)出口阵列参数错1X(0135)精度校正参数错1X(0136)公用参数错1X(0137)防抖参数错1X(0138)硬件配置参数错1X(0139)功能配置参数错1X(0140)备用1X(0141)备用1X(0142)备用1X(0143)定值区号错1X(0144)定值存
4、储错1X(0145-0160)备用1X(0161)差流越限动作1X(0162)一侧A相CT断线动作1X(0163)一侧B相CT断线动作1X(0164)侧C相CT断线动作1X(0165)二侧A相CT断线动作1X(0166)二侧B相CT断线动作1X(0167)二侧C相CT断线动作寄存器地址寄存器名称测试结果1X(0257)差速断动作1X(0258)差动动作4实时模拟寄存器地址寄存器名称面板显示值测试结果3X(0001)一侧IA3X(0002)3X(0003)一侧IB3X(0004)3X(0005)一侧IC3X(0006)3X(0007)二侧L3X(0008)3X(0009)二侧h3X(0010)3
5、X(0011)二侧IC3X(0012)3X(0013)IcdA3X(0014)3X(0015)IcdB3X(0016)3X(0017)IcdC3X(0018)3X(0019)IzdA3X(0020)3X(0021)IzdB3X(0022)3X(0023)IzdC3X(0024)5定值读写5.1 校时信息寄存器地址寄存器名称读渊试结果写测试结果4X(0001)秒4X(0002)分4X(0003)时4X(0004)日4X(0005)月4X(0006)年5.2 整组投退、定值切换漓试字节序号寄存器地址名称测试结果04X(0101)整组投退1定值区号定值区号：字节序号地址名称读测试结果写测试结果O4X
6、(0103)公用保护参数差流越限1备用24X(0104)备用3备用44X(0105)越限电流定值564X(0106)动作延时784X(0107)一侧额定电流9104X(0108)二侧额定电流11124X(0109)速断参数差速断投退13备用144X(0110)备用15备用164X(0111)差速断电流定值17184X(0112)备用19204X(0113)差动保护参数差动投退21判CT断线投退224X(0114)CT断线闭锁投退23备用244X(0115)差电流定值25264X(0116)拐点1电流27284X(0117)比例制动系数129304X(0118)拐点2电流31324X(0119)比例制动系数233344X(0120)有流定值35字节序号地址名称读测试结果写测试结果364X(0121)出差速断1DJ8DJ一37口差速断9DJ16DJ384X(0122)阵差动1DJ8DJ39列差动9DJ16DJ404X(0123)功差速断一41能差动一424X(0124)配备用43置备用一
