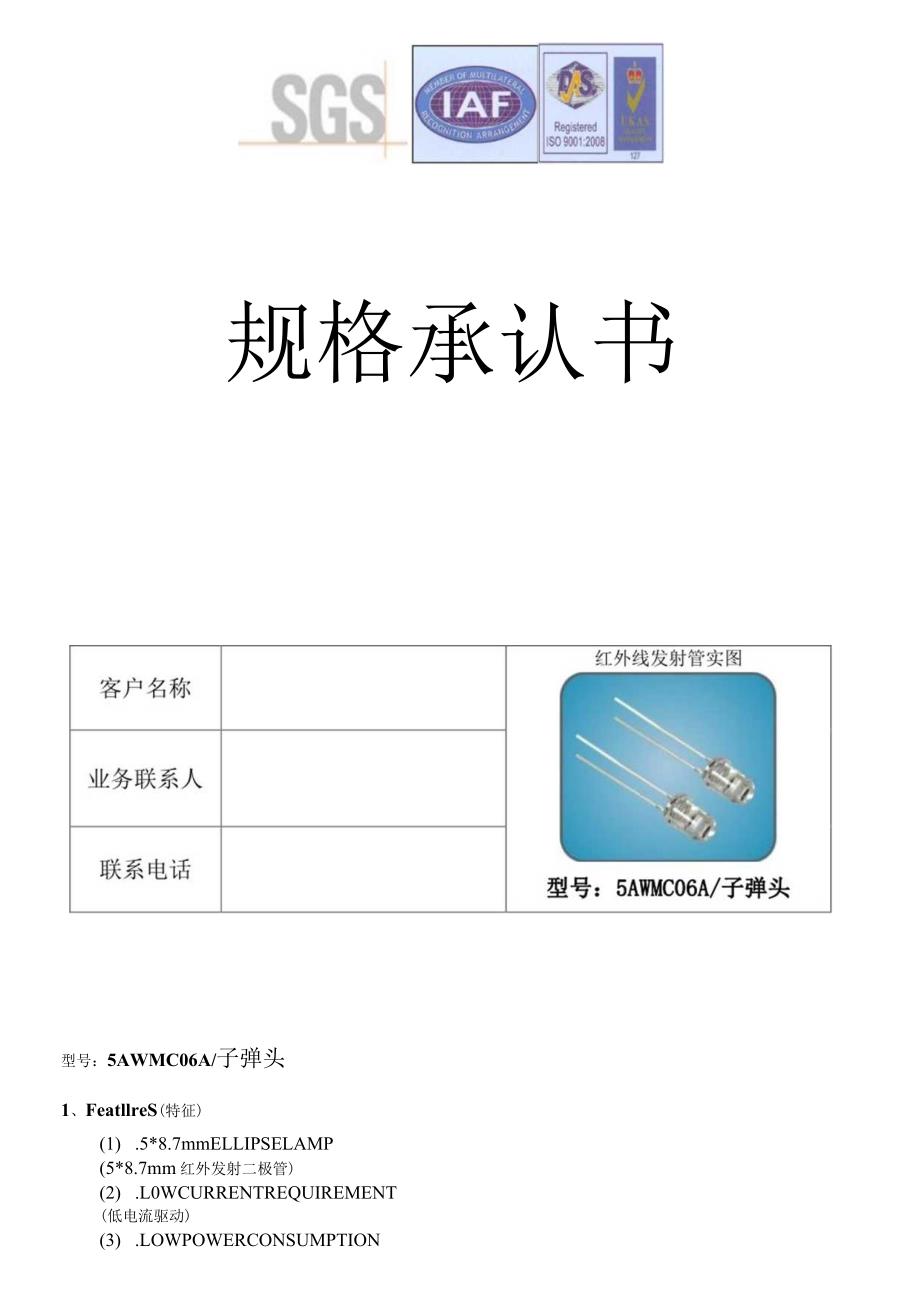

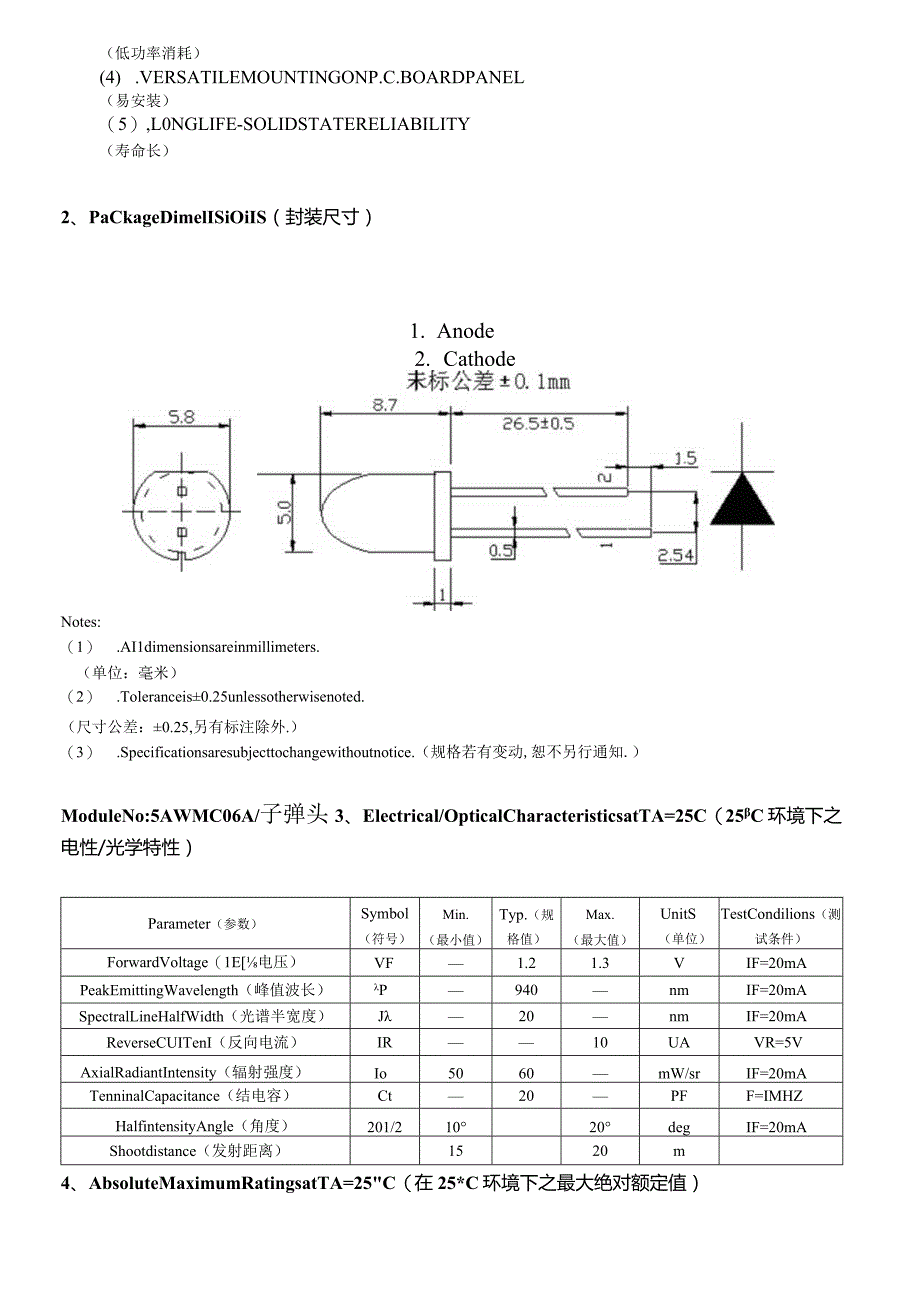

1、规格承认书型号:5AWMC06A/子弹头1、FeatllreS(特征)(1) .5*8.7mmELLIPSELAMP(5*8.7mm红外发射二极管)(2) .L0WCURRENTREQUIREMENT(低电流驱动)(3) .LOWPOWERCONSUMPTION(低功率消耗)(4) .VERSATILEMOUNTINGONP.C.BOARDPANEL(易安装)(5),L0NGLIFE-SOLIDSTATERELIABILITY(寿命长)2、PaCkageDimelISiOiIS(封装尺寸)1. Anode2. CathodeNotes:(1) .AI1dimensionsareinmillim
2、eters.(单位:毫米)(2) .Toleranceis0.25unlessotherwisenoted.(尺寸公差:0.25,另有标注除外.)(3) .Specificationsaresubjecttochangewithoutnotice.(规格若有变动,恕不另行通知.)ModuleNo:5AWMC06A/子弹头3、Electrical/OpticalCharacteristicsatTA=25C(25C环境下之电性/光学特性)Parameter(参数)Symbol(符号)Min.(最小值)Typ.(规格值)Max.(最大值)UnitS(单位)TestCondilions(测试条件)F

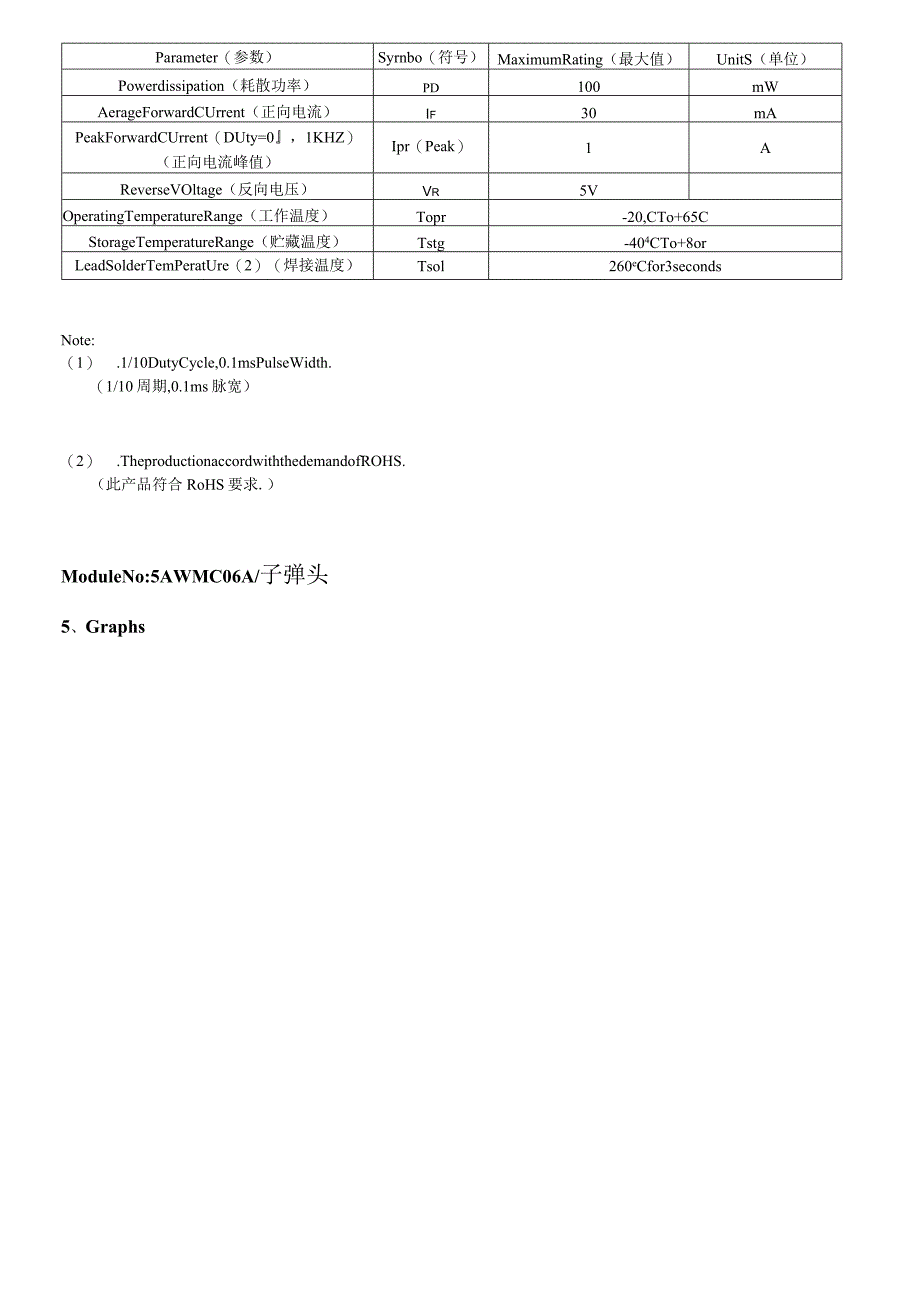

3、orwardVoltage(1E电压)VF1.21.3VIF=20mAPeakEmittingWavelength(峰值波长)P940nmIF=20mASpectralLineHalfWidth(光谱半宽度)J20nmIF=20mAReverseCUITenI(反向电流)IR10UAVR=5VAxialRadiantIntensity(辐射强度)Io5060mW/srIF=20mATenninalCapacitance(结电容)Ct20PFF=IMHZHalfintensityAngle(角度)201/21020degIF=20mAShootdistance(发射距离)1520m4、Absol
4、uteMaximumRatingsatTA=25C(在25*C环境下之最大绝对额定值)Parameter(参数)Syrnbo(符号)MaximumRating(最大值)UnitS(单位)Powerdissipation(耗散功率)PD100mWAerageForwardCUrrent(正向电流)If30mAPeakForwardCUrrent(DUty=0,1KHZ)(正向电流峰值)Ipr(Peak)1AReverseVOltage(反向电压)Vr5VOperatingTemperatureRange(工作温度)Topr-20,CTo+65CStorageTemperatureRange(贮藏
5、温度)Tstg-404CTo+8orLeadSolderTemPeratUre(2)(焊接温度)Tsol260eCfor3secondsNote:(1) .1/10DutyCycle,0.1msPulseWidth.(1/10周期,0.1ms脉宽)(2) .TheproductionaccordwiththedemandofROHS.(此产品符合RoHS要求.)ModuleNo:5AWMC06A/子弹头5、Graphs,匚匚匚匚厂ig5RelativeLUmjnOUXIntenSjtyvsFOFWFrdCurT力nt(mA)OOOL匚匚匚010No304050607。Fig6RolaciVeLUininoUSODo9IntenS一vsUair云TimeOdD100CyOutputPoverIf=5(AFonrardCurrent(mA)OutputPowerIf=50nAOutputPowerIf=50mA7vsAmbientTGmPBTRtUre(d)OutputPowerIf=50mForwardCurrent(mA)三biQrLTGmPCrHLUre(c)
