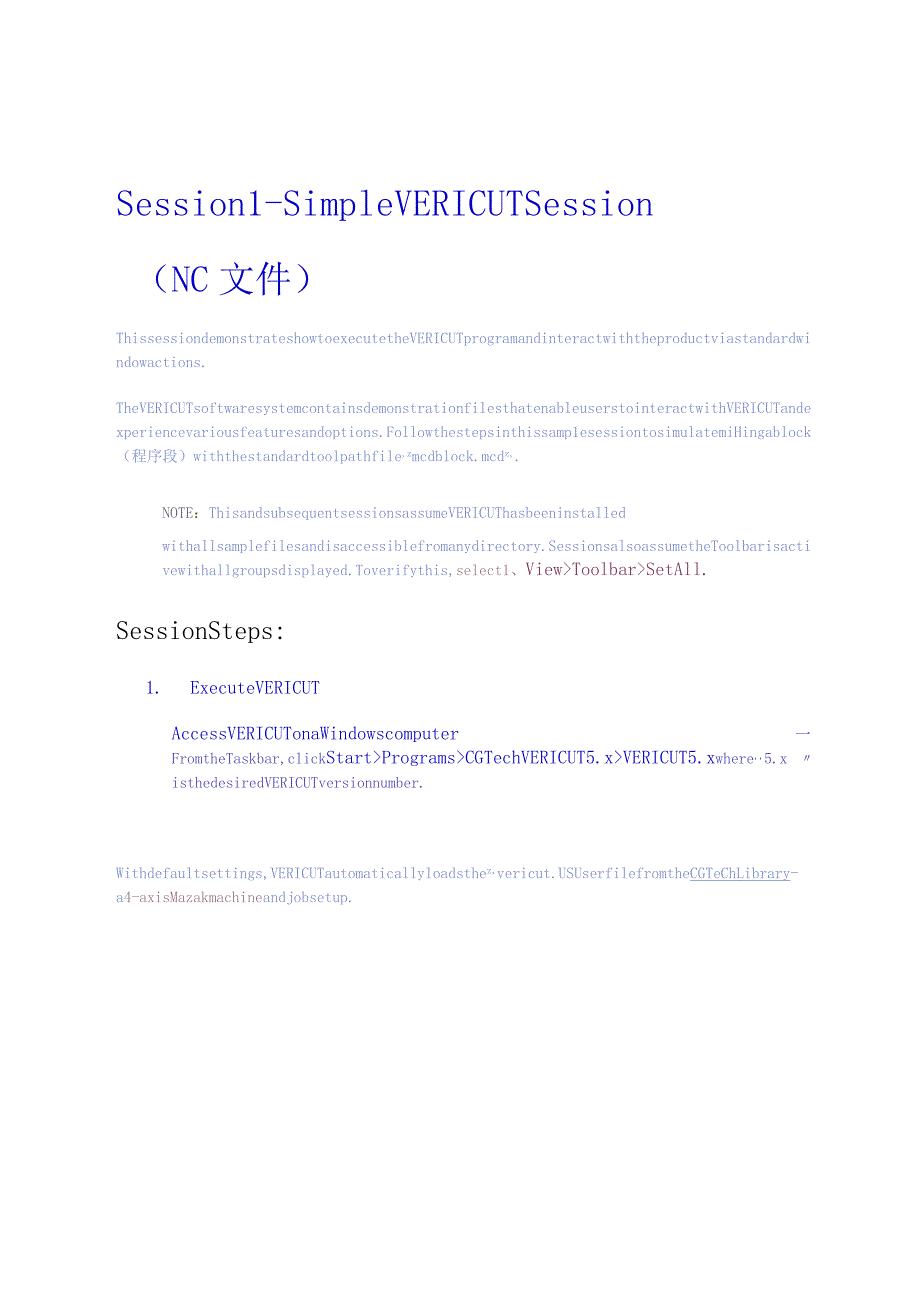

1、外语文献翻译Session1-SimpleVERICUTSession（NC文件）ThissessiondemonstrateshowtoexecutetheVERICUTprogramandinteractwiththeproductviastandardwindowactions.TheVERICUTsoftwaresystemcontainsdemonstrationfilesthatenableuserstointeractwithVERICUTandexperiencevariousfeaturesandoptions.Followthestepsinthissamp1esessio
2、ntosimulatemiHingablock（程序段）withthestandardtoolpathfile,zmcdblock.mcdz,.NOTE：ThisandsubsequentsessionsassumeVERICUThasbeeninstalledwithallsamplefilesandisaccessiblefromanydirectory.SessionsalsoassumetheToolbarisactivewithallgroupsdisplayed.Toverifythis,select1、ViewToolbarSetAll.SessionSteps:1. Execu

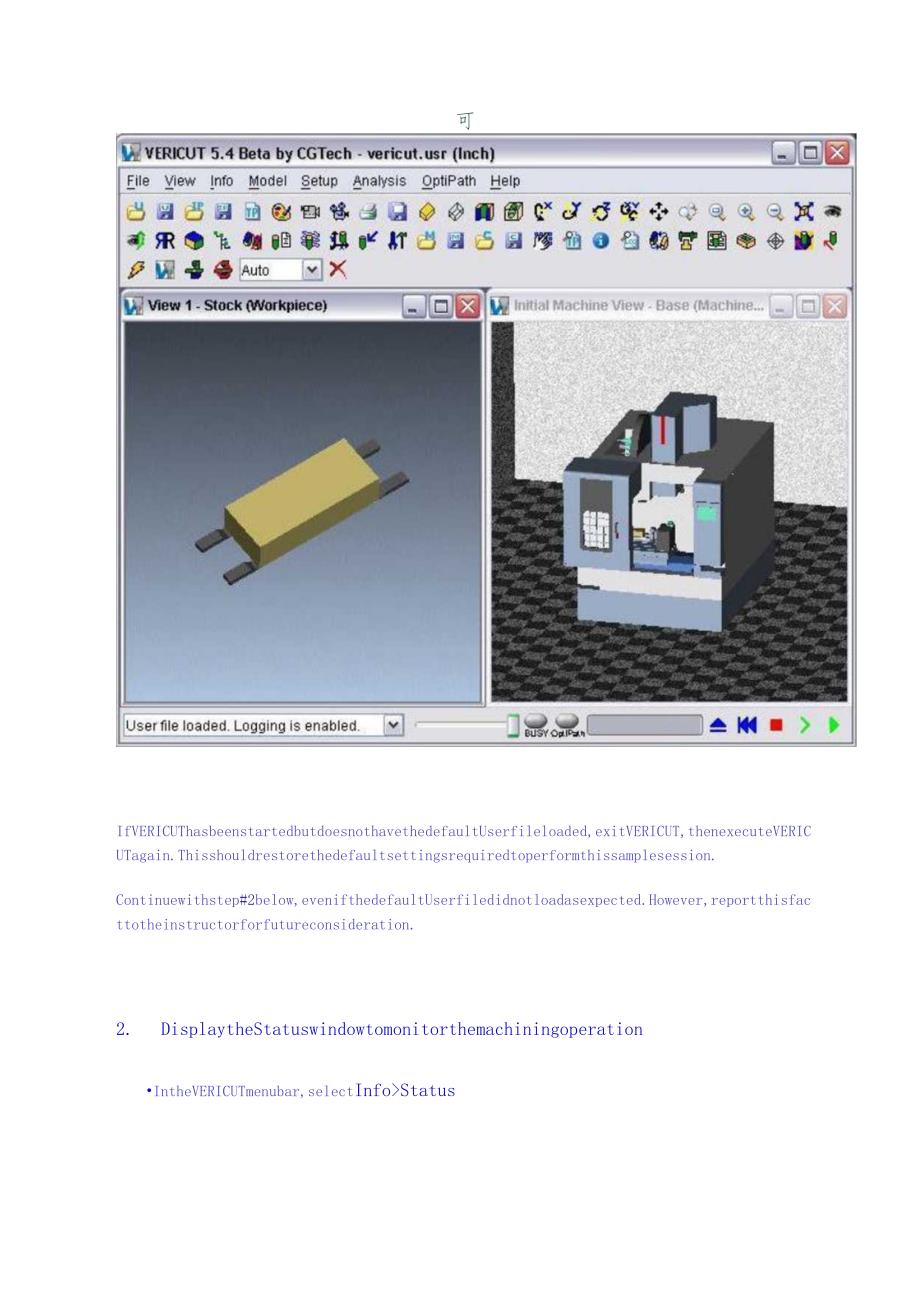

3、teVERICUTAccessVERICUTonaWindowscomputer一FromtheTaskbar,clickStartProgramsCGTechVERICUT5.xVERICUT5.xwhere,5.xisthedesiredVERICUTversionnumber.Withdefaultsettings,VERICUTautomaticallyloadsthez,vericut.USUserfilefromtheCGTeChLibrary-a4-axisMazakmachineandjobsetup.可IfVERICUThasbeenstartedbutdoesnothave
4、thedefaultUserfileloaded,exitVERICUT,thenexecuteVERICUTagain.Thisshouldrestorethedefaultsettingsrequiredtoperformthissamplesession.Continuewithstep#2below,evenifthedefaultUserfiledidnotloadasexpected.However,reportthisfacttotheinstructorforfutureconsideration.2. DisplaytheStatuswindowtomonitorthemac
5、hiningoperationIntheVERICUTmenubar,selectInfoStatusTheStatuswindowprovidesinformationaboutthecurrenttoolpathrecordbeingprocessedmachiningconditions.Thiswindowcanbeleftopenforconstantmonitoring,orusetheClosebuttontodismissit.Youcanre-openandclosethiswindowatanytime.3. SetVERICUTtostopprocessingatthee
6、ndofeachfile IntheVERICUTmenubar,selectSetupMotion IntheMotionwindow,StopAt=EndofeachFile OKS-I Iicon -4. CuttheVERICUTstockmodelIntheVERICUTmainwindow,pressthePlaytoEndamillingtoolpathissimulatedInthisexample,thefollowingerrorscanbeseen:ThecuthighlightedwiththeredErrorcolorindicatesmaterialwasremov
7、edfromthefixture.Ifleftasis,thiscouldresultinabrokentoolordamagedfixture.Thereisalsosomeredmarkswhereatoolholdertouchedthepart.TheStatuswindowErrorsfieldrevealsthatVERICUTdetected9errorsduringthistoolpathprocessing.VERICUTuseshighresolutiongraphicsandcolorshadingtoprovideexcellentViSibiIityofthemach
8、iningprocess,andahighqualityimageofthemachinedpart.ThemodelinVERICUTrepresentshowthemachinedpartwouldlook,ifactuallycutbytheNCmachinetool.5. Reviewtheerrorsinthetoolpathfile IntheVERICUTmenubar,selectAnalysisToolpathReviewtodisplaytheToolpathReviewwindow. IntheToolpathreviewwindow,selectthefirsterro
9、rintheErrorcolumnNoticethatthetoolispositionedatthelocationwheretheerroroccurred.Thecutterbodyremovedsomematerialwhilerampinginthepocket.Thiscutterdoesnotcutinitscenter.Becausetheredmarkismachinedafterward,withoutthereview,thiserrorcouldhavebeenmissed.Thereisalsoanerrorwherethelightcomponentcollided
10、withthezzRotaryTablez,component.ThiserrorcomesfromtheMachineSimulationview.Themachinecollisionscanhaveverydangerousrepercussions. Whenfinishedreviewingtheerrors,selectFileClosetodismisstheToolpathReviewwindow.6. Cutthesecondoperation Press the Play to End -l Iicon - The part is fl ipped and a new fi
11、xture is loadedyInthisexample,thefollowingerrorscanbeseen:ThecuthighlightedwiththeredErrorcolorindicatesmaterialwasremovedfromthefixture.Ifleftasis,thiscouldresultinabrokentoolordamagedfixture.TheStatuswindowErrorsfieldrevealsthatVERICUTdetected2errorsduringthistoolpathprocessing.VERICUTuseshighreso
12、lutiongraphicsandcolorshadingtoprovideexcellentvisibilityofthemachiningprocess,andahighqualityimageofthemachinedpart.ThemodelinVERICUTrepresentshowthemachinedpartwouldlook,ifactuallycutbytheNCmachinetool.7. Reviewtheerrorsinthetoolpathfile SelectAnalysisToolpathReviewtodisplaytheToolpathReviewwindow
13、andreviewtheerrorsinthesecondtoolpath. Whenfinishedreviewingtheerrors,selectFileClosetodismisstheToolpathReviewwindow.ALogfileisautomaticallycreatedbyVERICUTwhichidentifiesanyerrorsthatoccurredduringthesimulation.Whenerrorsaredetected,theVERICUTLogfileinformationidentifiestheexactdatablockwhichcause
14、dtheerror,aswellasthelinenumberoftheblockinthetoolpathfile.TheVERICUTLogfilecontainsothervaluableinformation,suchas:whenandwhattoolpathfile(s)wereprocessed,simulatedmachiningtimes,andmore.TheLogfilecanbeviewedviatheInfomenu,asdemonstratedbythenextstep.8. ViewtheLogfileandsearchforerrormessages Inthe
15、VERICUTmenubar,selectInfoVERICUTLog Enterthesearchpattern,“errorinthetextfieldatthetopoftheVERICUTLogwindow SelectSearchForwardiconErrormessagescanbelocatedquicklybyrepeatedlyclickingSearchForward.SampleVERICUTLogfilefromprocessingthetoolpathfile:9. ClosetheLogfilewindowIntheVERICUTLogwindow,select:
