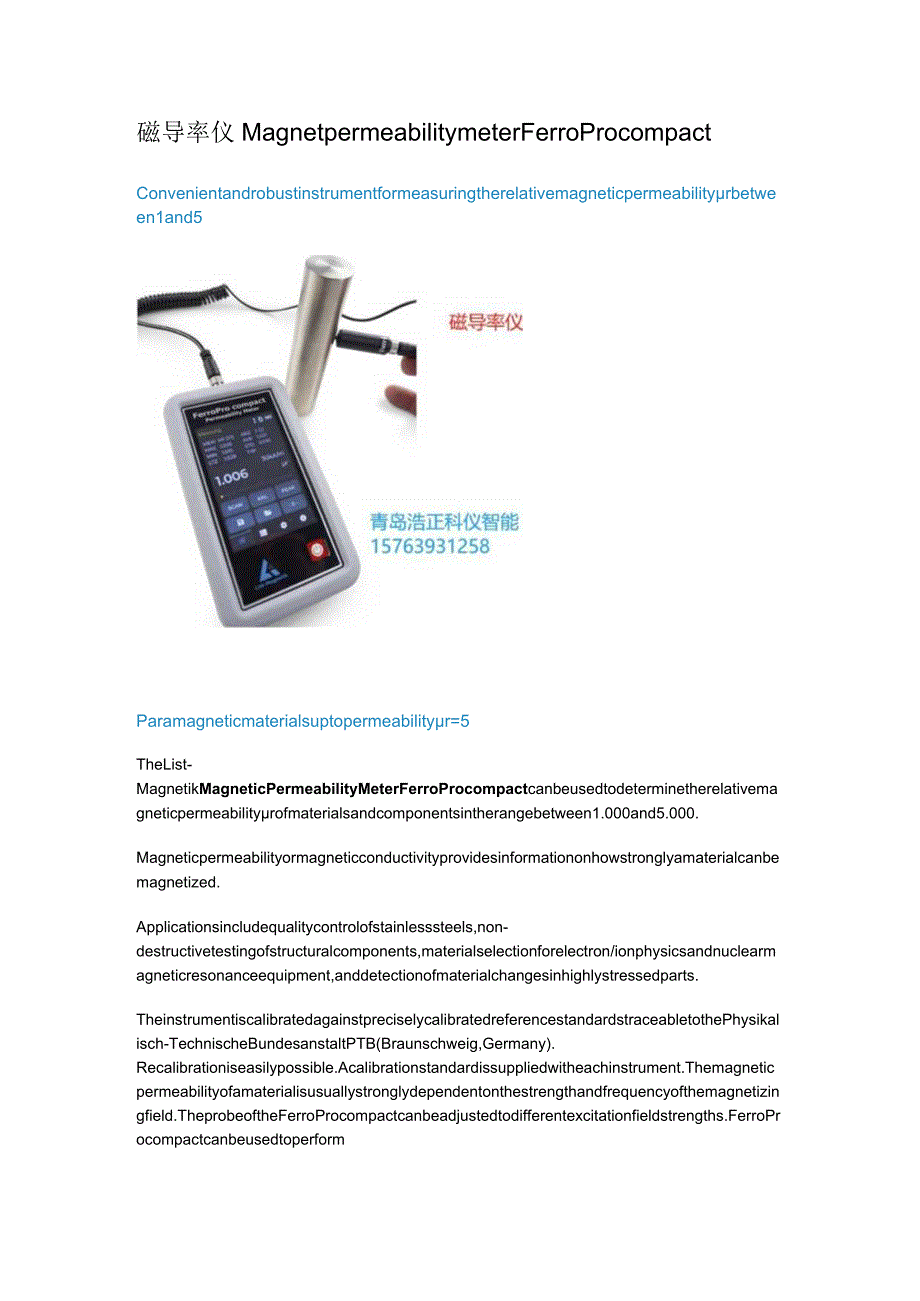

1、磁导率仪MagnetpermeabilitymeterFerroProcompactConvenientandrobustinstrumentformeasuringtherelativemagneticpermeabilityrbetween1and5Paramagneticmaterialsuptopermeabilityr=5TheList-MagnetikMagneticPermeabilityMeterFerroProcompactcanbeusedtodeterminetherelativemagneticpermeabilityrofmaterialsandcomponentsi
2、ntherangebetween1.000and5.000.Magneticpermeabilityormagneticconductivityprovidesinformationonhowstronglyamaterialcanbemagnetized.Applicationsincludequalitycontrolofstainlesssteels,non-destructivetestingofstructuralcomponents,materialselectionforelectron/ionphysicsandnuclearmagneticresonanceequipment
3、,anddetectionofmaterialchangesinhighlystressedparts.TheinstrumentiscalibratedagainstpreciselycalibratedreferencestandardstraceabletothePhysikalisch-TechnischeBundesanstaltPTB(Braunschweig,Germany).Recalibrationiseasilypossible.Acalibrationstandardissuppliedwitheachinstrument.Themagneticpermeabilityo

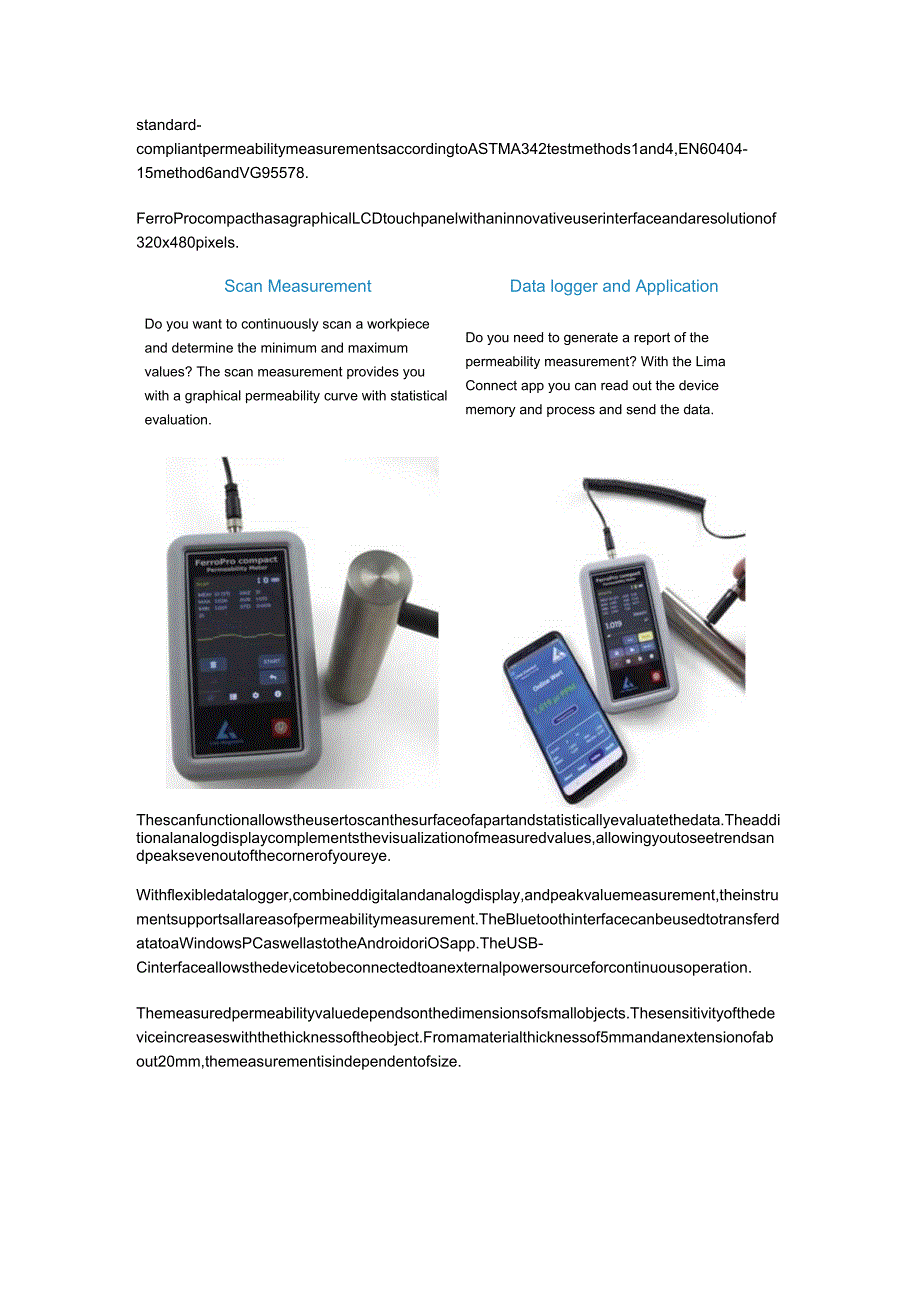

4、famaterialisusuallystronglydependentonthestrengthandfrequencyofthemagnetizingfield.TheprobeoftheFerroProcompactcanbeadjustedtodifferentexcitationfieldstrengths.FerroProcompactcanbeusedtoperformstandard-compliantpermeabilitymeasurementsaccordingtoASTMA342testmethods1and4,EN60404-15method6andVG95578.F
5、erroProcompacthasagraphicalLCDtouchpanelwithaninnovativeuserinterfaceandaresolutionof320x480pixels.Scan MeasurementDo you want to continuously scan a workpiece and determine the minimum and maximum values? The scan measurement provides you with a graphical permeability curve with statistical evaluat
6、ion.Data logger and ApplicationDo you need to generate a report of the permeability measurement? With the Lima Connect app you can read out the device memory and process and send the data.Thescanfunctionallowstheusertoscanthesurfaceofapartandstatisticallyevaluatethedata.Theadditionalanalogdisplaycom
7、plementsthevisualizationofmeasuredvalues,allowingyoutoseetrendsandpeaksevenoutofthecornerofyoureye.Withflexibledatalogger,combineddigitalandanalogdisplay,andpeakvaluemeasurement,theinstrumentsupportsallareasofpermeabilitymeasurement.TheBluetoothinterfacecanbeusedtotransferdatatoaWindowsPCaswellastot
8、heAndroidoriOSapp.TheUSB-Cinterfaceallowsthedevicetobeconnectedtoanexternalpowersourceforcontinuousoperation.Themeasuredpermeabilityvaluedependsonthedimensionsofsmallobjects.Thesensitivityofthedeviceincreaseswiththethicknessoftheobject.Fromamaterialthicknessof5mmandanextensionofabout20mm,themeasurem

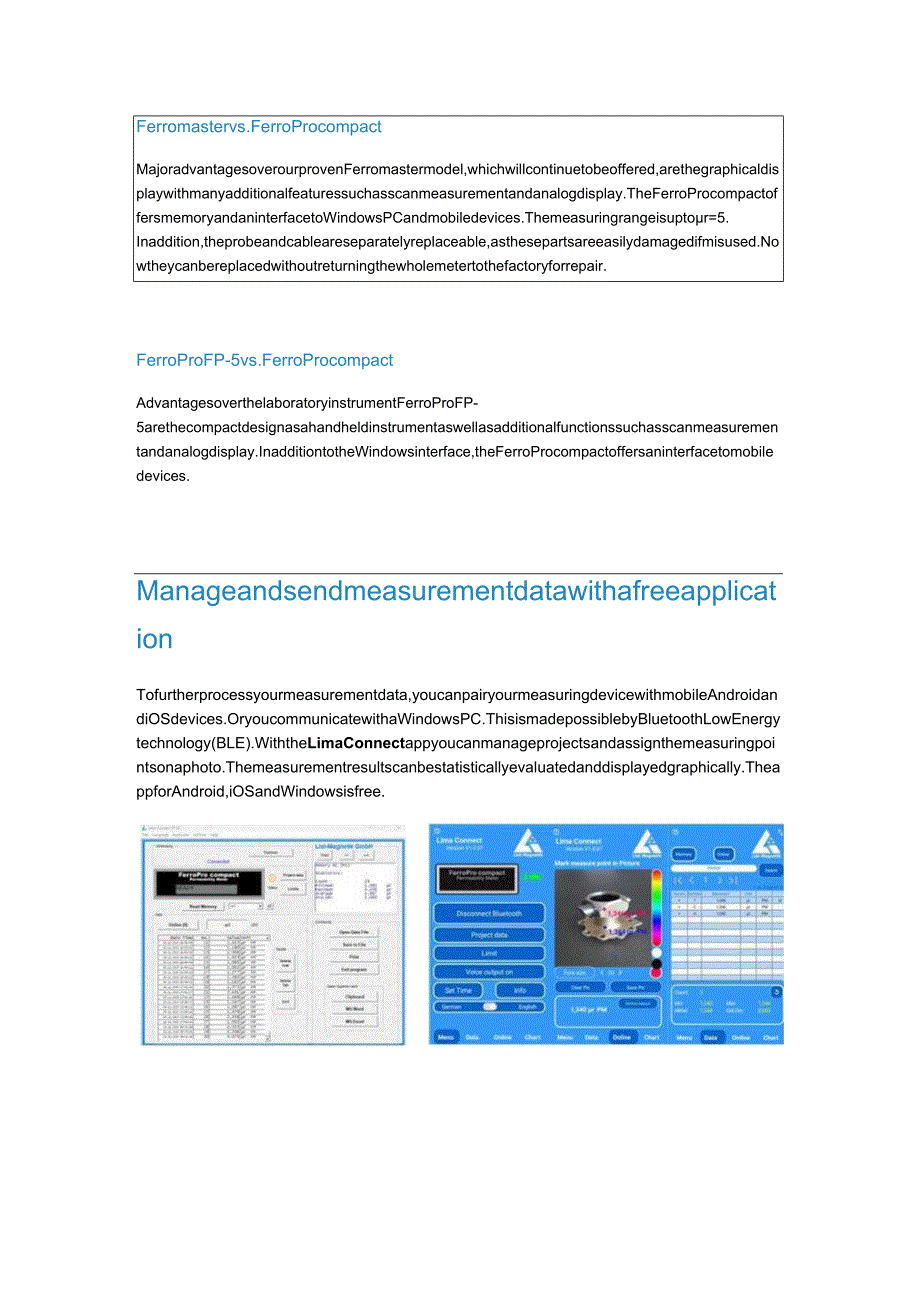

9、entisindependentofsize.Ferromastervs.FerroProcompactMajoradvantagesoverourprovenFerromastermodel,whichwillcontinuetobeoffered,arethegraphicaldisplaywithmanyadditionalfeaturessuchasscanmeasurementandanalogdisplay.TheFerroProcompactoffersmemoryandaninterfacetoWindowsPCandmobiledevices.Themeasuringrang
10、eisuptor=5.Inaddition,theprobeandcableareseparatelyreplaceable,asthesepartsareeasilydamagedifmisused.Nowtheycanbereplacedwithoutreturningthewholemetertothefactoryforrepair.FerroProFP-5vs.FerroProcompactAdvantagesoverthelaboratoryinstrumentFerroProFP-5arethecompactdesignasahandheldinstrumentaswellasa
11、dditionalfunctionssuchasscanmeasurementandanalogdisplay.InadditiontotheWindowsinterface,theFerroProcompactoffersaninterfacetomobiledevices.ManageandsendmeasurementdatawithafreeapplicationTofurtherprocessyourmeasurementdata,youcanpairyourmeasuringdevicewithmobileAndroidandiOSdevices.Oryoucommunicatew
12、ithaWindowsPC.ThisismadepossiblebyBluetoothLowEnergytechnology(BLE).WiththeLimaConnectappyoucanmanageprojectsandassignthemeasuringpointsonaphoto.Themeasurementresultscanbestatisticallyevaluatedanddisplayedgraphically.TheappforAndroid,iOSandWindowsisfree.TechnicalDataMagnetpermeabilitymeterFerroProco
13、mpactMeasuringrange:r=1.000to5.000Probe:FPC-5,interchangeable,withseparatelyinterchangeablecableAccuracyat20:(r-1)x5%,againsttraceablecalibrationstandards,canbereadjustedResolution:0.001Ambienttemperaturerange0-50Display:LCDcolortouchpanel320x480pixelsTemperaturerange:0to50Multilingualmenu:English,F
14、rench,German,Italian,SpanishDatalogger:10,000measurements,flexiblydivisibleInterface:BluetoothLowEnergyinterfacetocommunicatewithAndroid,iOSandWindowsAppforAndroid,iOS,Windows:freeviaGooglePlayStore,AppleAppStore,List-MagnetikhomepagePowersupply:3x1.5VAAMignon.ExternalpowersupplyconnectableviaUSB-COperatingtime:Approximately25hourswithbattery,unlimitedwithexternalpowersource.Dimensions:150x85x35mmWeight:320gwithbatteries
