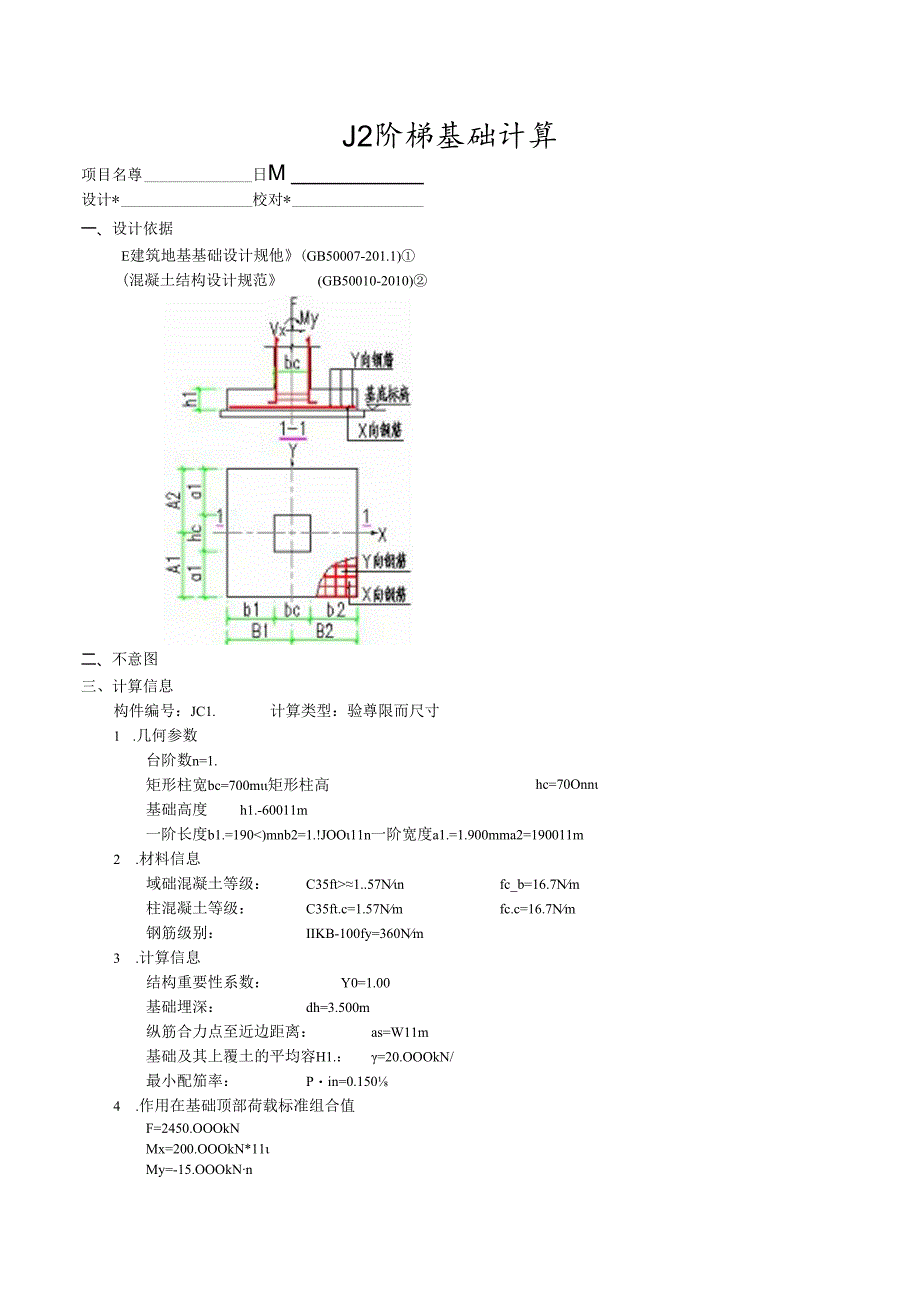

1、J2阶梯基础计算项目名尊日M设计*校对*一、设计依据E建筑地基基础设计规他(GB50007-201.1)(混凝土结构设计规范(GB50010-2010)二、不意图三、计算信息构件编号：JC1.计算类型：验尊限而尺寸1 .几何参数台阶数n=1.hc=70Onn矩形柱宽bc=700m矩形柱高基础高度h1.-60011m一阶长度b1.=1901.57Nnfc_b=16.7Nm柱混凝土等级：C35ft.c=1.57Nmfc.c=16.7Nm钢筋级别：IIKB-100fy=360Nm3 .计算信息结构重要性系数：Y0=1.00基础埋深：dh=3.500m纵筋合力点至近边距离：as=W11m基础及其上覆土

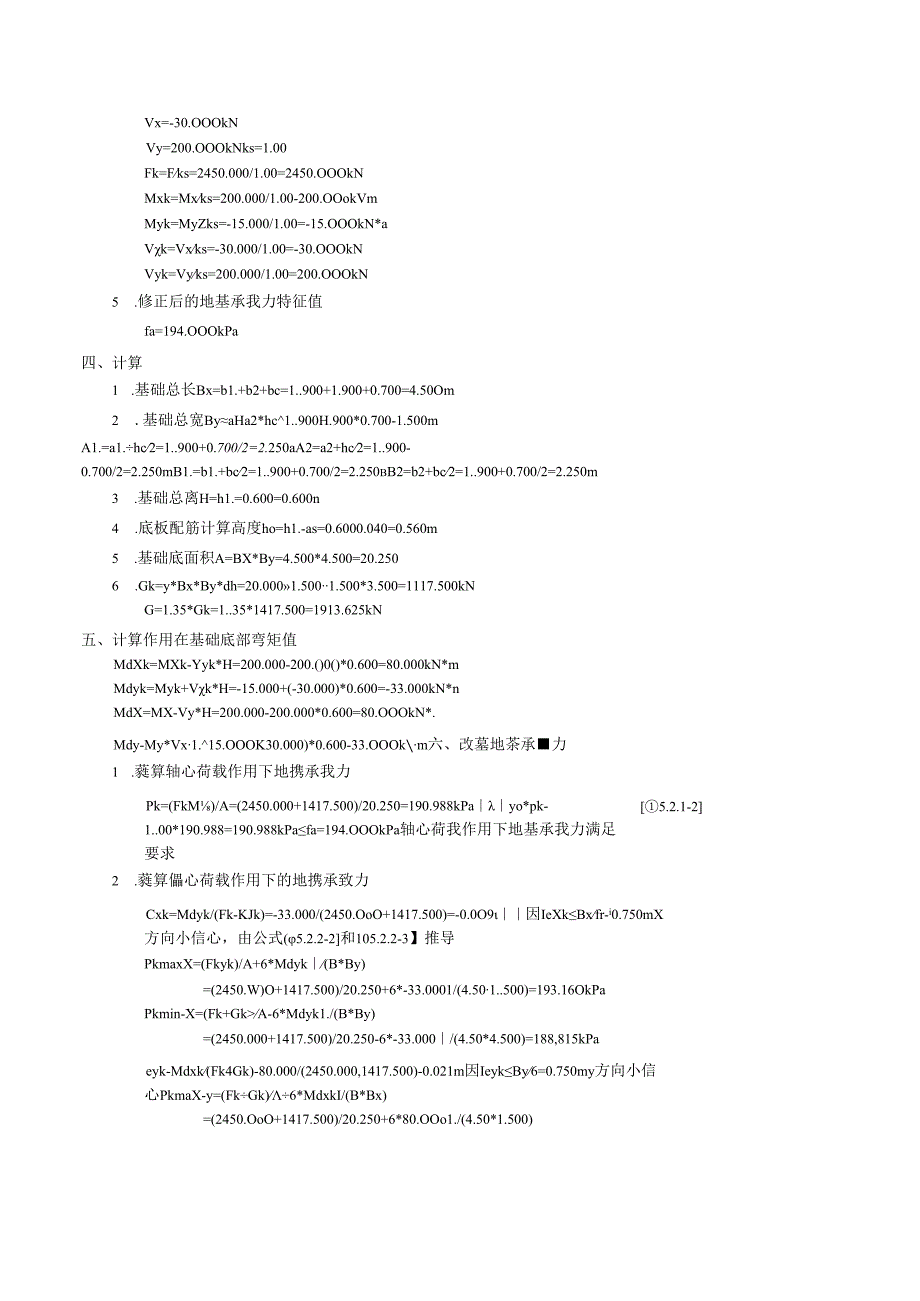

2、的平均容H1.：=20.OOOkN/最小配笳率：Pin=0.1504 .作用在基础顶部荷载标准组合值F=2450.OOOkNMx=200.OOOkN*11My=-15.OOOkNnVx=-30.OOOkNVy=200.OOOkNks=1.00Fk=Fks=2450.000/1.00=2450.OOOkNMxk=Mxks=200.000/1.00-200.OOokVmMyk=MyZks=-15.000/1.00=-15.OOOkN*aVk=Vxks=-30.000/1.00=-30.OOOkNVyk=Vyks=200.000/1.00=200.OOOkN5 .修正后的地基承我力特征值fa=194
3、.OOOkPa四、计算1 .基础总长Bx=b1.+b2+bc=1.900+1.900+0.700=4.50Om2 .基础总宽ByaHa2*hc1.900H.900*0.700-1.500mA1.=a1.hc2=1.900+0.700/2=2.250aA2=a2+hc2=1.900-0.700/2=2.250mB1.=b1.+bc2=1.900+0.700/2=2.250bB2=b2+bc2=1.900+0.700/2=2.250m3 .基础总离H=h1.=0.600=0.600n4 .底板配筋计算高度ho=h1.-as=0.6000.040=0.560m5 .基础底面积A=BX*By=4.50
4、0*4.500=20.2506 .Gk=y*Bx*By*dh=20.0001.5001.500*3.500=1117.500kNG=1.35*Gk=1.35*1417.500=1913.625kN五、计算作用在基础底部弯矩值MdXk=MXk-Yyk*H=200.000-200.()0()*0.600=80.000kN*mMdyk=Myk+Vk*H=-15.000+(-30.000)*0.600=-33.000kN*nMdX=MX-Vy*H=200.000-200.000*0.600=80.OOOkN*.Mdy-My*Vx1.15.OOOK30.000)*0.600-33.OOOkm六、改墓地茶
5、承力1 .蕤算轴心荷载作用下地携承我力5.2.1-2Pk=(FkM)/A=(2450.000+1417.500)/20.250=190.988kPayo*pk-1.00*190.988=190.988kPafa=194.OOOkPa轴心荷我作用下地基承我力满足要求2 .蕤算儡心荷载作用下的地携承致力Cxk=Mdyk/(Fk-KJk)=-33.000/(2450.OoO+1417.500)=-0.0O9因IeXkBxfr-i0.750mX方向小信心，由公式(5.2.2-2和105.2.2-3】推导PkmaxX=(Fkyk)/A+6*Mdyk(B*By)=(2450.W)O+1417.500)/2
6、0.250+6*-33.0001/(4.501.500)=193.16OkPaPkmin-X=(Fk+GkA-6*Mdyk1./(B*By)=(2450.000+1417.500)/20.250-6*-33.000/(4.50*4.500)=188,815kPaeyk-Mdxk(Fk4Gk)-80.000/(2450.000,1417.500)-0.021m因IeykBy6=0.750my方向小信心PkmaX-y=(FkGk)6*MdxkI/(B*Bx)=(2450.OoO+1417.500)/20.250+6*80.OOo1./(4.50*1.500)-196.255kPa1.,kmin-y

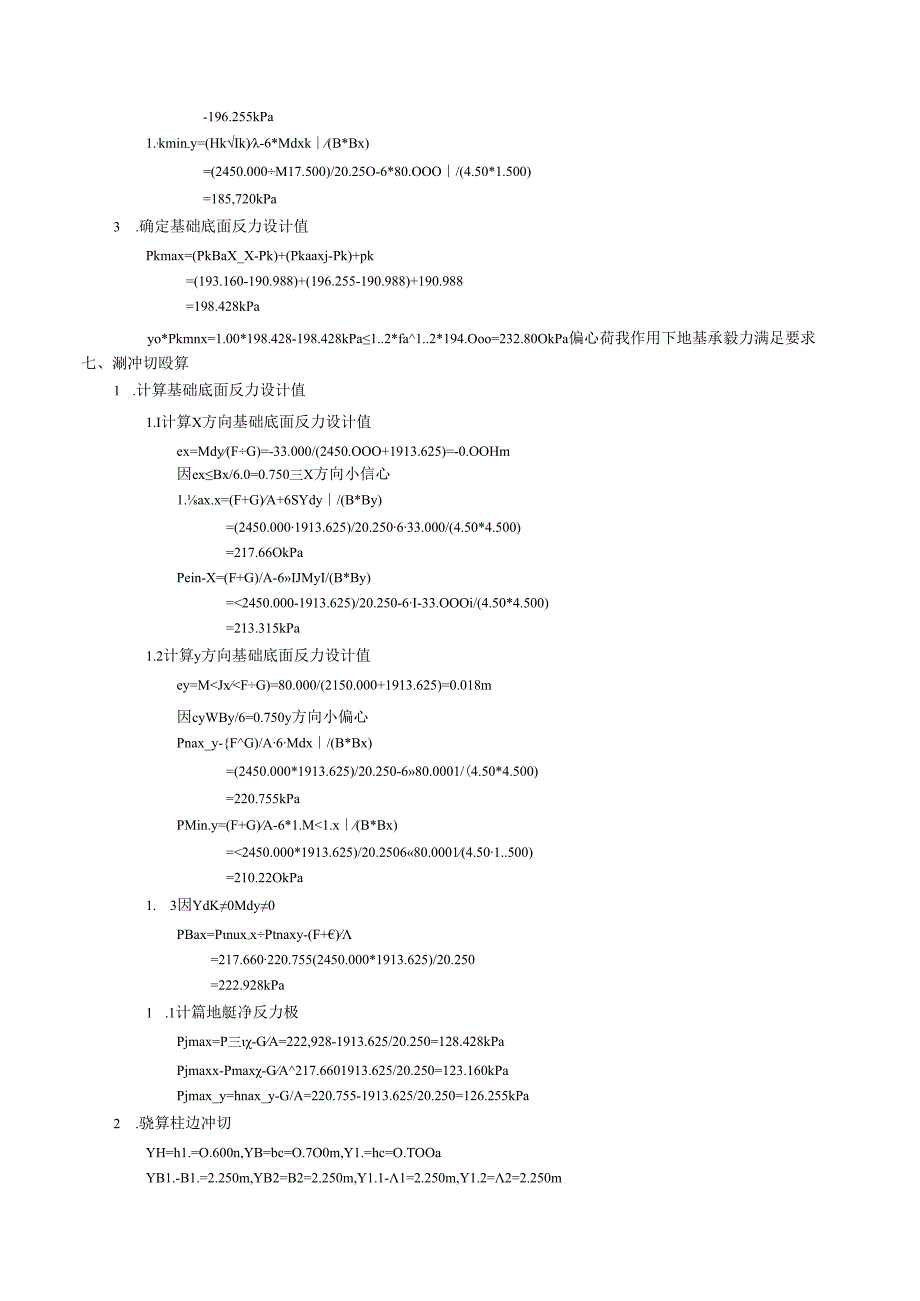

7、=(HkIk)-6*Mdxk(B*Bx)=(2450.000M17.500)/20.25O-6*80.OOO/(4.50*1.500)=185,720kPa3 .确定基础底面反力设计值Pkmax=(PkBaX_X-Pk)+(Pkaaxj-Pk)+pk=(193.160-190.988)+(196.255-190.988)+190.988=198.428kPayo*Pkmnx=1.00*198.428-198.428kPa1.2*fa1.2*194.Ooo=232.80OkPa偏心荷我作用下地基承毅力满足要求七、涮冲切殴算1 .计算基础底面反力设计值1.I计算X方向基础底面反力设计值ex=Mdy
8、(FG)=-33.000/(2450.OOO+1913.625)=-0.OOHm因exBx/6.0=0.750三X方向小信心1.ax.x=(F+G)A+6SYdy/(B*By)=(2450.0001913.625)/20.250633.000/(4.50*4.500)=217.66OkPaPein-X=(F+G)/A-6IJMyI/(B*By)=2450.000-1913.625)/20.250-6I-33.OOOi/(4.50*4.500)=213.315kPa1.2计算y方向基础底面反力设计值ey=MJxFG)=80.000/(2150.000+1913.625)=0.018m因cyWBy
9、/6=0.750y方向小偏心Pnax_y-FG)/A6Mdx/(B*Bx)=(2450.000*1913.625)/20.250-680.0001/(4.50*4.500)=220.755kPaPMin.y=(F+G)A-6*1.M1.x(B*Bx)=2450.000*1913.625)/20.250680.0001(4.501.500)=210.22OkPa1. 3因YdK0Mdy0PBax=Pnux-xPtnaxy-(F+)=217.660220.755(2450.000*1913.625)/20.250=222.928kPa1 .1计篇地艇净反力极Pjmax=P三-GA=222,928-
10、1913.625/20.250=128.428kPaPjmaxx-Pmax-GA217.6601913.625/20.250=123.160kPaPjmax_y=hnax_y-G/A=220.755-1913.625/20.250=126.255kPa2 .骁算柱边冲切YH=h1.=O.600n,YB=bc=O.7O0m,Y1.=hc=O.TOOaYB1.-B1.=2.250m,YB2=B2=2.250m,Y1.1-1=2.250m,Y1.2=2=2.250mY1.1.o=YH-HS=O.56Om2. 1因(YH800)hp=1.02. 2X方向柱对基础的冲切脸算X冲切位比斜极面上边长bt=Y
11、B=O.700mX冲切位置斜蔽面下边长bh=YB2*YHo=1.82OmX冲切不利位置=bt+bb)2=(0.700+1.820)/2=1.260mX冲切面积1x-nax(Y1.1.-V1.2-YHo)*(YB2YHo)(Y1.1Y1./2YHo,(Y1.2-Y1.2-YHo)(YB*2*Y1.1.o)(Y1.2-Y1.2-Y1.1.o=max(250-0.700/2-0.560)(0.700+2*0.560)+(2.25(H0.700/2-0.560,(2.250-0.700/2-0.560)*(0.700+2*0.560)+(2.250-0.700/2-0.560)=uax(4.234,4
