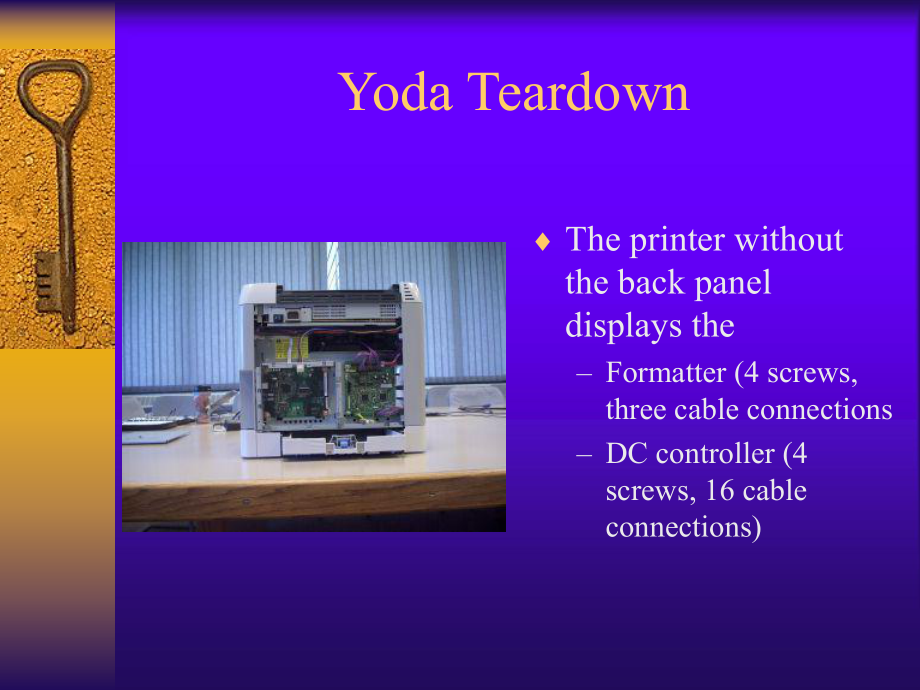

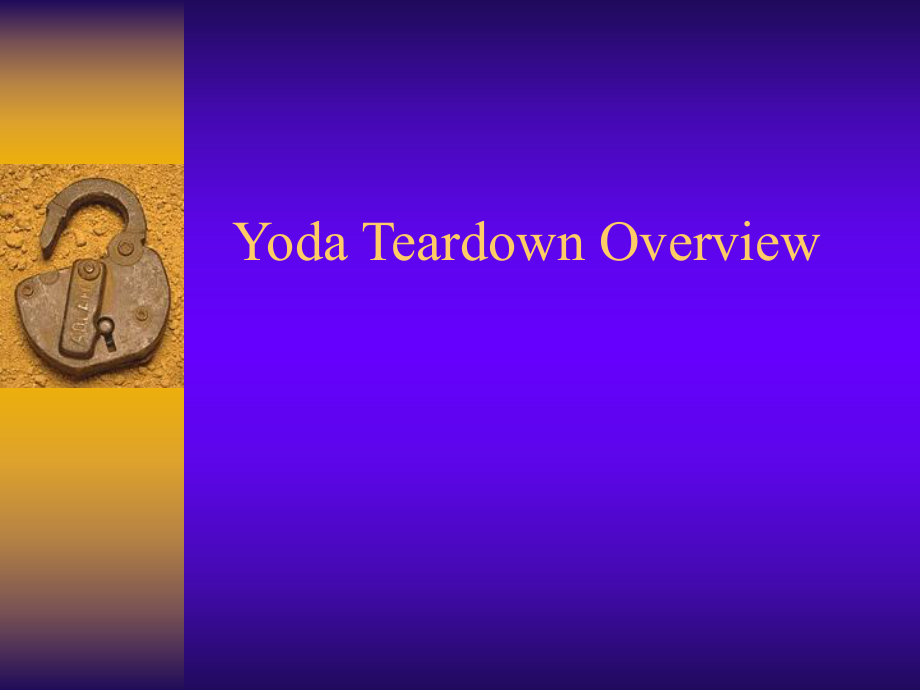

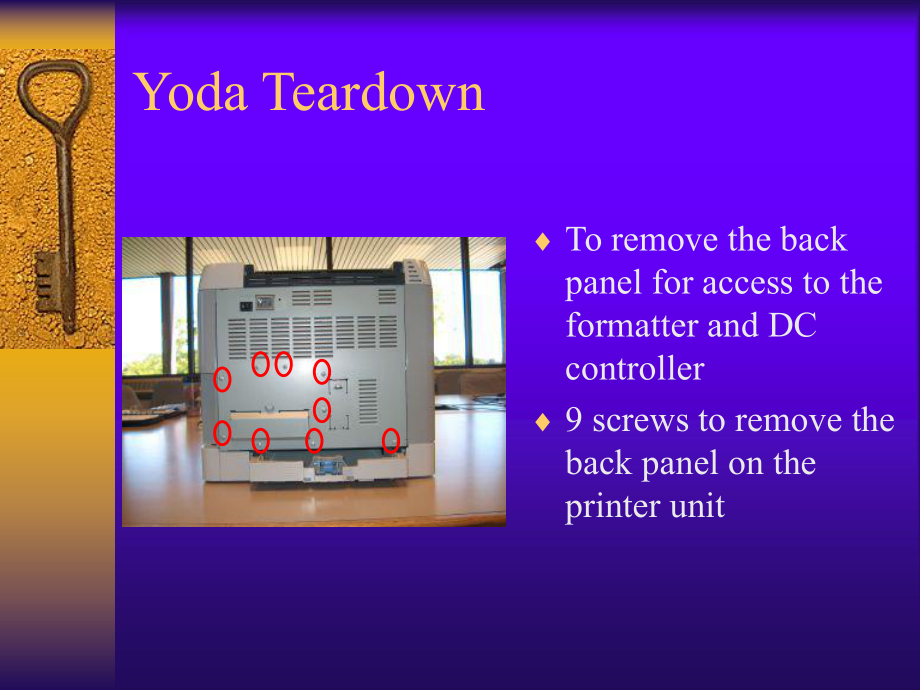

1、Yoda Teardown OverviewYoda TeardownTo remove the back panel for access to the formatter and DC controller9 screws to remove the back panel on the printer unitYoda TeardownThe printer without the back panel displays the Formatter (4 screws, three cable connections DC controller (4 screws, 16 cable co

2、nnections)Formatter removalRemove the power connector Remove 9 screws from the back panelRemove 2 cables from the engine and 1 from the DC controllerRemove 4 screws to lift the formatter out of the cageDC Controller removalDisconnect the power cableRemove 9 screws from the back panelDisconnect 15 se

3、parate connectorsRemove 4 screwsTake the PCA out of the printerControl Panel removalControl Panel Remove paper catch tray Remove top cover trim Remove top cover (4 screws) Remove diverter (1 screw) Remove control panel PCA (2 screws) and unplug 1 ribbon cableFuser removalRemove the power cableOpen f

4、ront door. WARNING ! ETB is exposed and can be easily damaged. ETB is not a service part.Remove right side cover (1 screw)Remover paper output trayRemove top cover trimRemove top cover (4 screws)WARNING ! LV is now fully exposed !Remove paper guides (3)Disconnect cables (6)WARNING ! Cable clasp is c

5、onnected to LV board which is very brittle and easy to breakRemove fuser (2 screws)Separation Pad removalThere are two screws that need to be removed in order to change the separation padE-label reader removalIts advised against removing or replacing the E-label readers because of their proximity to the ETB
