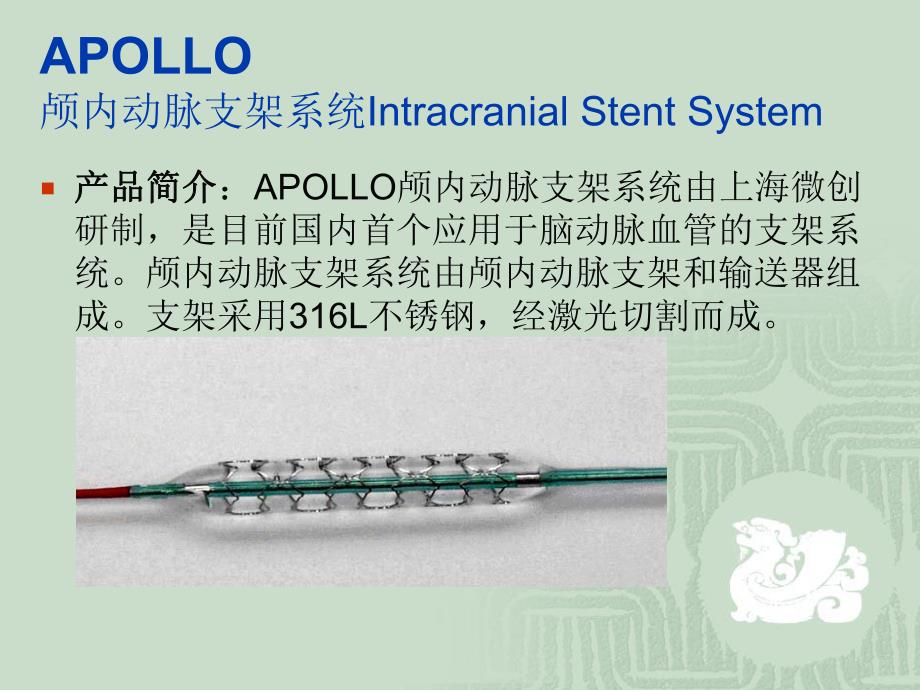

1、脑血管病介入治疗常用材料上海微创Microporthttp:/APOLLO颅内动脉支架系统Intracranial Stent System产品简介产品简介：APOLLO颅内动脉支架系统由上海微创研制，是目前国内首个应用于脑动脉血管的支架系统。颅内动脉支架系统由颅内动脉支架和输送器组成。支架采用316L不锈钢，经激光切割而成。APOLLO颅内动脉支架系统产品特点产品特点 1）支架结构采用正弦波的开放设计，并由一对“n”型连接键 呈空间“u”形连接，每组空间“u”形连接呈90度轴向交错排列，使支架具有优秀的柔顺性。2）正弦波的加强环结构支架保持支架径向支撑力而降低金属覆盖率。3）特殊的“镜面”抛
2、光技术，提供无可挑剔的支架表面质量。4）特殊的支架压握技术，突出输送过程的安全性，并使输送系统保持较小的截面积，完成高难度手术操作。APOLLO颅内动脉支架系统产品规格产品规格主要技术指标主要技术指标 1.支架厚度为0.0040inch2.支架金属覆盖率2.5时为 13.60%3.支架扩张后短缩率3%，径向回弹率4%4.支架名义扩张压力为6atm，爆破压12atm5.支架压握后直径0.0365in.0.0391in.支架直径(mm)支架长度(mm)8132.50A2508A25133.00A3008A3013*最小导引导管的内径为5F*导引导丝直径为0.014inchRunner2球囊扩张导管
3、球囊扩张导管 柔软、新型的超软端设计提高了导管的跟踪性能和穿越病变的能力，降低损伤血管壁的风险。应用国际先进水准的新型高分子材料FANTAX。凹陷型的显影点安装方式，减小了球囊折叠后的外径尺寸和显影点对球囊的损伤。产品规格及主要技术指标产品规格及主要技术指标定货号扩张后球囊直径（mm）球囊有效长度（mm）名义压力（atm）额定爆破压力RBP（atm）管轴尺寸（F）远端/中部/近端1515pn1.5156142.5/2.9/2.12015pn2.0156142.5/2.9/2.12515pn2.5156142.5/2.9/2.13015pn3.0156142.5/2.9/2.13515pn3.5
4、156142.5/2.9/2.14015pn4.0156142.5/2.9/2.11520pn1.5206142.5/2.9/2.12020pn2.0206142.5/2.9/2.12520pn2.5206142.5/2.9/2.13020pn3.0206142.5/2.9/2.13520pn3.5206142.5/2.9/2.14020pn4.0206142.5/2.9/2.1产品规格及主要技术指标产品规格及主要技术指标定货号扩张后球囊直径（mm）球囊有效长度（mm）名义压力（atm）额定爆破压力RBP（atm）管轴尺寸（F）远端/中部/近端1525pn1.5256142.5/2.9/2.1
5、2025pn2.0256142.5/2.9/2.12525pn2.5256142.5/2.9/2.13025pn3.0256142.5/2.9/2.13525pn3.5256142.5/2.9/2.14025pn4.0256142.5/2.9/2.11530pn1.5306142.5/2.9/2.12030pn2.0306142.5/2.9/2.12530pn2.5306142.5/2.9/2.13030pn3.0306142.5/2.9/2.13530pn3.5306142.5/2.9/2.14030pn4.0306142.5/2.9/2.1SATURN远远端端保保护护器器Distal Pr
6、otective Device骨架选用了激光切割镍钛（NITI）合金。远端保护器的主要构成是一个带有伞状滤网的0.014“导丝，滤网膜由高分子材料制成，上有大量0.1毫米微孔。伞状滤网预装在熟料外鞘管中，鞘管有侧孔与带滤网导丝配合呈快速交换结构。SATURN滤网外径滤网外径适用血管适用血管导丝长度导丝长度导丝外径导丝外径输送鞘输送鞘管外径管外径回收鞘回收鞘管外径管外径鞘管长度鞘管长度型号型号mm mm mm FrenchFrenchmm SATURN-002.52.51800/30000.0142.841400SATURN-01331800/30000.0142.841400SATURN-02
7、441800/30000.0142.841400SATURN-03551800/30000.014341400SATURN-04661800/30000.014341400SATURN-05771800/30000.0143.541400SATURN-06881800/30000.0143.541400产品分类标记及技术规格产品分类标记及技术规格 北京乐普http:/ 使用雷帕霉素药物制剂具有良好的生物相容和缓释特性，能够确保临床使用的安全性和有效性。采用双螺旋结构的设计提供强有力的血管支撑力，使支架能保持良好的支撑和贴壁性能，尤其在分叉开口完全闭塞钙化等病变中表现优异的性能。支架品种规格长度
8、由1236mm 直径由2.54.0mm规格型号齐全能够适用不同病变的临床要求。主要技术指标主要技术指标支架材质 AISI 316L医用不锈钢支架厚度为0.0045inch支架表面积 15-18%缩短率为 小于1%回弹率为 小于2%径向抗压 大于16psi球囊导管有效长度 1350mm支架预装后直径 0.95-1.1mm支架扩张后直径 2.50-4.00mm支架长度 12-36mm球囊允许压力 16atm球囊导管结构 导丝快速交换型涂层厚度 6m 药物剂量 1.2g/mm2佳腾guidanthttp:/ nitinol6F sheath/8F guide catheter Diameters:s
9、traight5.0,6.0,7.0,8.0,9.0,10.0 mm tappered 6-8mm,7-10mmlengths:20,30,40 mm 014 low-profile system Compatible with 100 cm guiding catheters and sheaths Stent ConfigurationsMaterial:Self-expandingNitinolStentlengths:20,30*,40*mmStentdiameters:Straight:5-10 mmTapered:6*8 mm,7*10 mmStent Designed for A
10、ccurate Placement 3 longitudinal spines reduce shortening Only 1.0%foreshortening1Unique Handle Design Design enables one hand deployment Eliminates“push-pull”technique Placed on table or leg,stabilizing system for accurate placementDesigned for Accuracy1Measuredusing7X40mmACCULINKstent.Testsperform
11、edbyanddatafiledatGuidant.RX ACCUNET Embolic Protection System 6F sheath/8F guide catheter compatible 4.5,5.5,6.5,and 7.5 mm basket diameters recommended for use in arteries ranging from 3.25 mm to 7.0 mm 0.014”guide wire based 190 cm and 300 cm lengthsPolyurethane filter over nitinol basketMaintain
12、s perfusion Artery range Basket Profile 3.25 mm 4.0 mm 4.5 mm 3.5F 4.0 mm 5.0 mm 5.5 mm 3.5F 5.0 mm 6.0 mm 6.5 mm 3.7F 6.0 mm 7.0 mm 7.5 mm 3.7FExcellentDeliverabilityGuide wire and delivery sheath enter vessel as one unit Highly flexible to navigate tortuous anatomy Low profile and smooth transitio
13、n from tip to filter basket.014”wire is torqued independent from filter basket DeliverySheathTipAccurateDeploymentRapid exchange unsheathing for stability and simplicity Peel away delivery sheath allows for controlled deployment PeelawayConvertibleSheath Capture and Control for Optimal Protection Hi
14、ghly flexible filter basket designed to conform to tortuosity Designed to capture high volume while allowing adequate blood flow Concentric design with guide wire centered in filter Four platinum radiopaque markers surround filter for visualization of wall apposition EffectiveandFlexibleFilter Secur
15、e Filter Retrieval Choiceoftworapidexchangerecoverycathetersdesignedspecificallyforthechallengesoffilterrecovery RX ACCUNET Recovery Catheter ShapeableRecoveryCatheterTipRX ACCUNET 2 Recovery Catheter Low-profile,flexible tip to allow for deflection away from stent struts during advancement Flexible
16、 catheter/shaft optimized for challenging guide catheter/sheath access Catheter shaft markers at 95 and 105 cm for reduced flouro time 美国美敦力公司(Medtronic,Inc.)http:/GuardWireTemporaryOcclusionandAspirationSystemGuardWire Ordering Information Racer Over-the-Wire Biliary Stent System 波士顿科学公司波士顿科学公司(Boston Scientific Corp)http:/亚太地区产品亚太地区产品Carotid Wallstent Monorail Stent FilterWire EX NexStent Carotid Stent Wingspan Stent System with Gateway PTA Balloon Catheter WingspanStentSystemwithGatewayPTABal
